PLL Calculator [MC 145151-2] 1.03
It is prepared to make the divider calculations of the MC145151-2 IC perfectly and easily.
To use the program, it is necessary to know the structure of the MC145151-2 and use the datasheet. It is also necessary to know the working principle of PLL frequency synthesizers.
The program is based on the specified input frequency and selected reference oscillator values and provides accurate and easy calculation of the divider values required for locking the PLL accordingly.
Version Informations
In version 1.03 of the program, the "Input Frequency Division" section has been stripped of the fixed value selection from the list, allowing for manual entry. Additionally, several other minor fixes have been implemented.
General Features

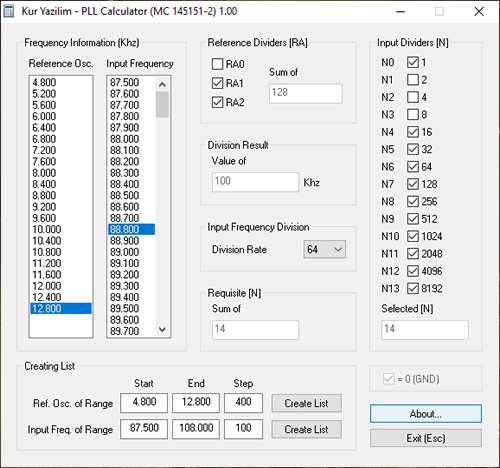

- Freely determining the reference oscillator value and input frequency
- Reference oscillator divider (RA0-RA2) and the input of the frequency divider (N0-N13) individually selectable
- When an external frequency divider is used, the input frequency divided to the desired value and the calculation can be made according to the resulting value
- Copy results to the clipboard or save them as ".bmp"
- Multi-language support (Turkish, English and other languages with language files created)
- Update check from the internet
